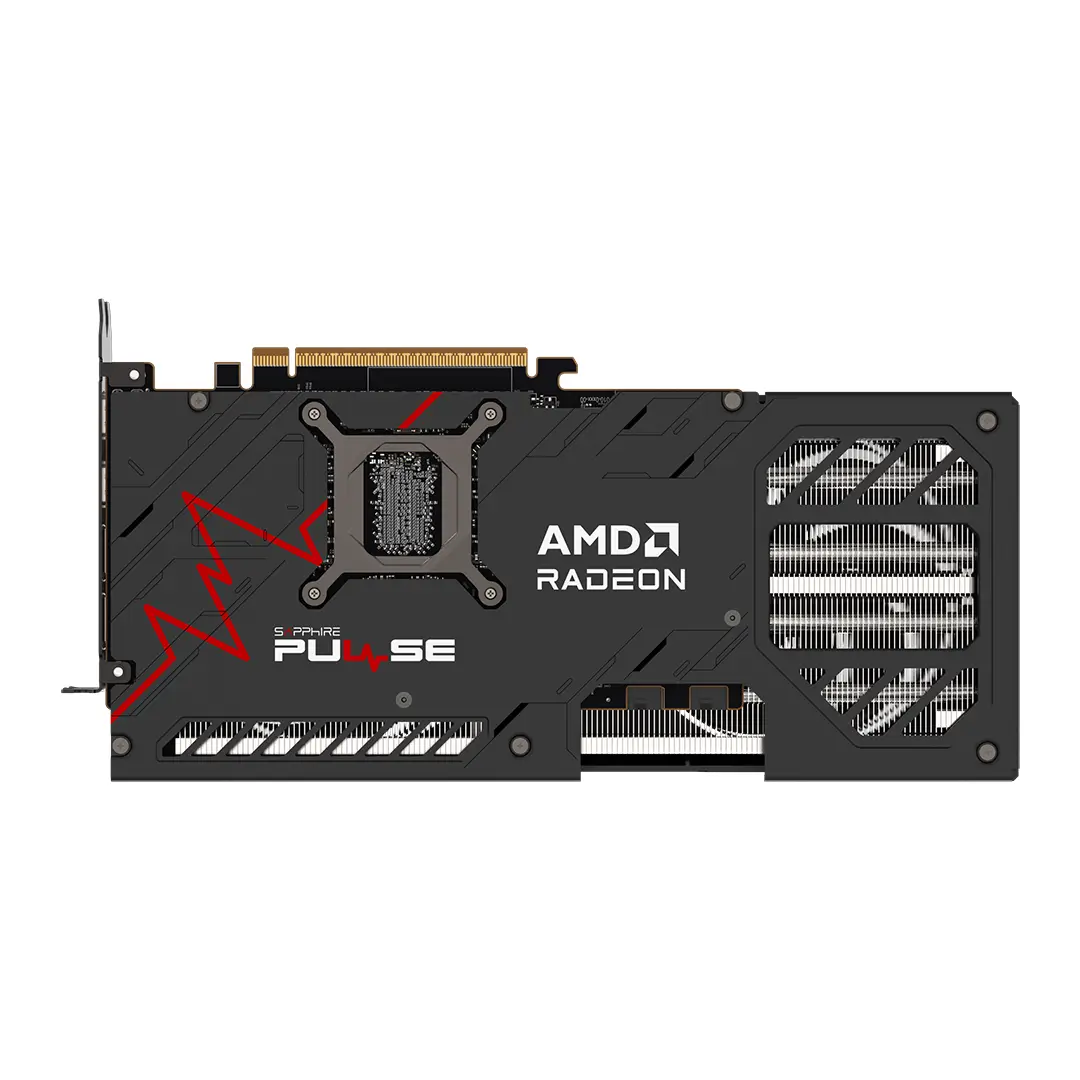

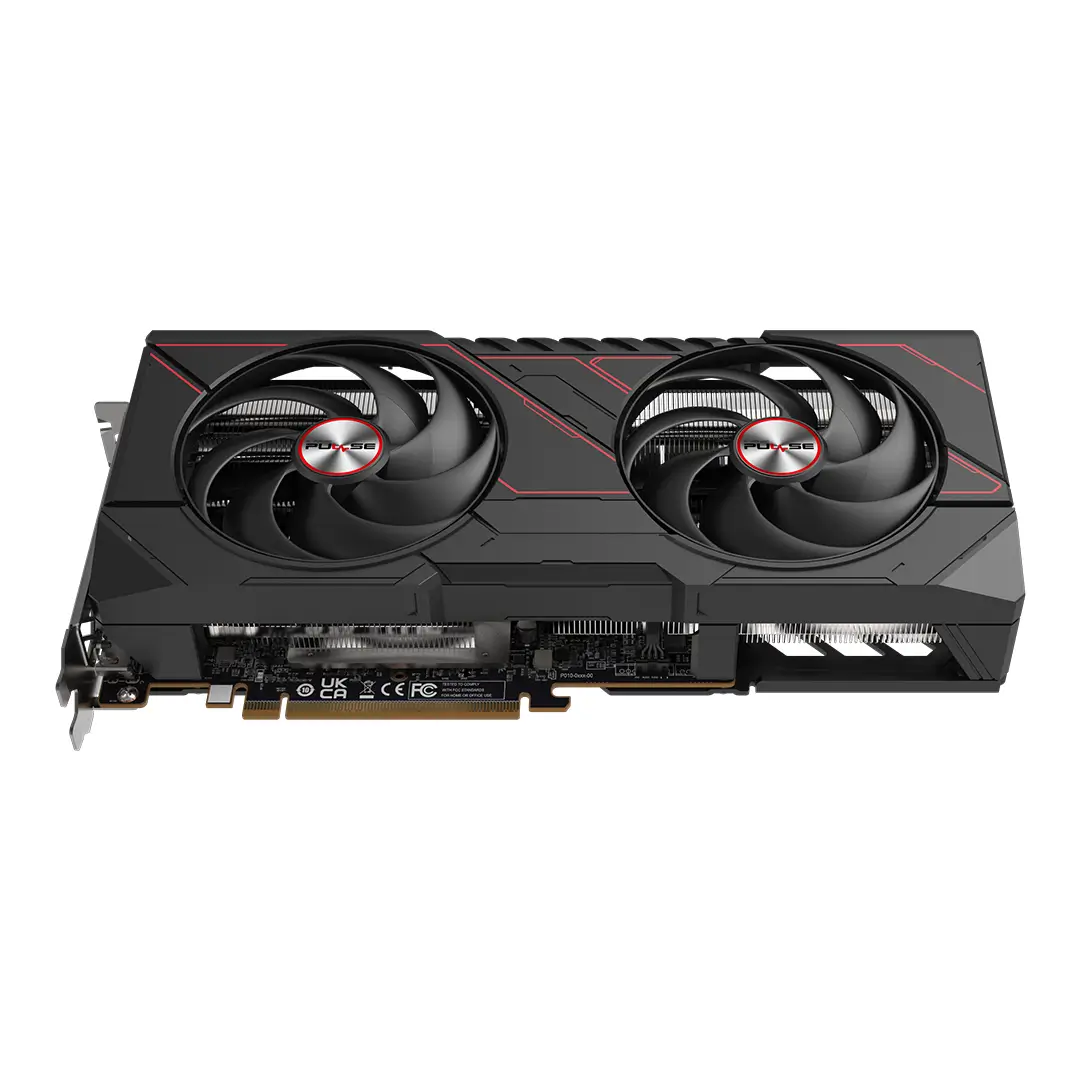

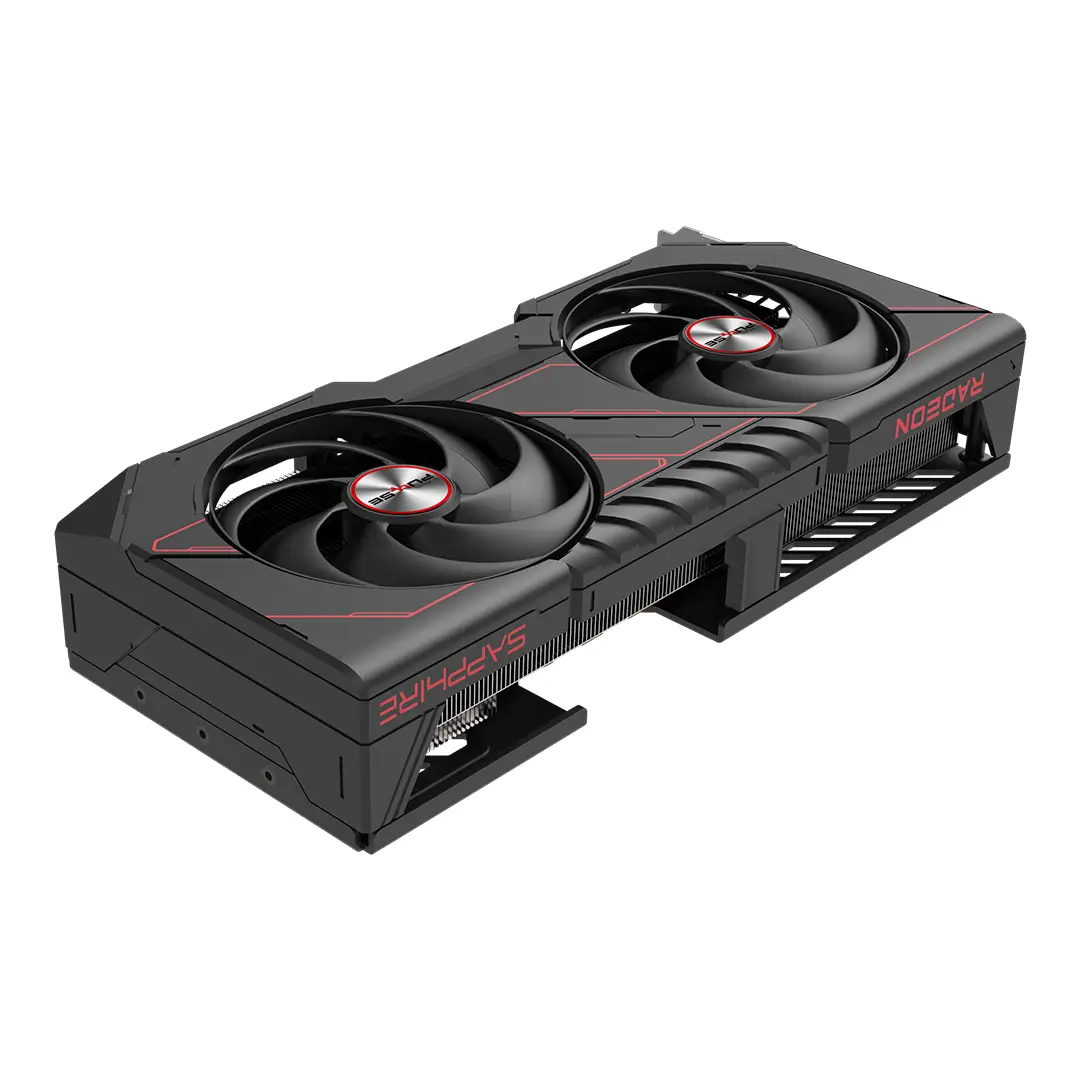

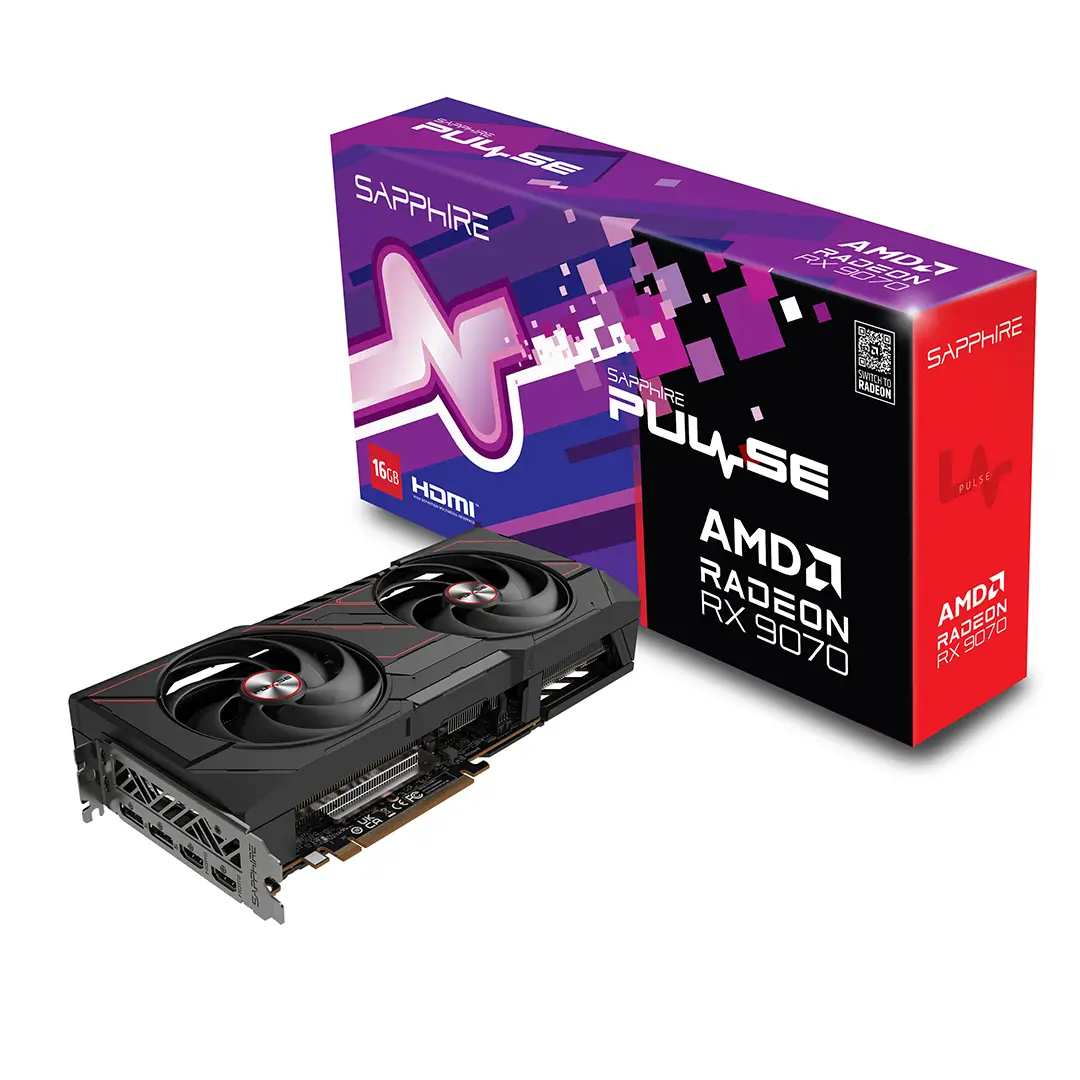

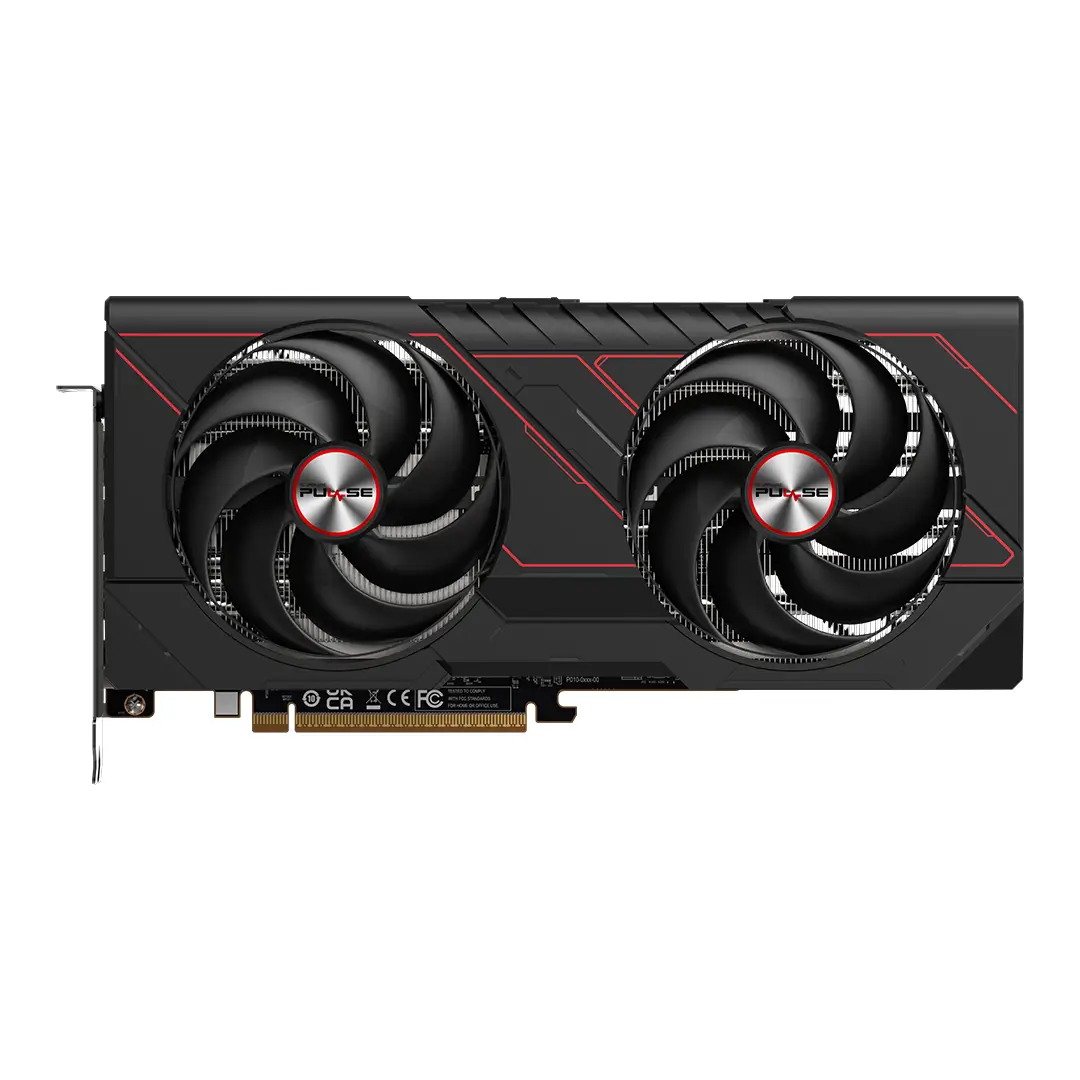

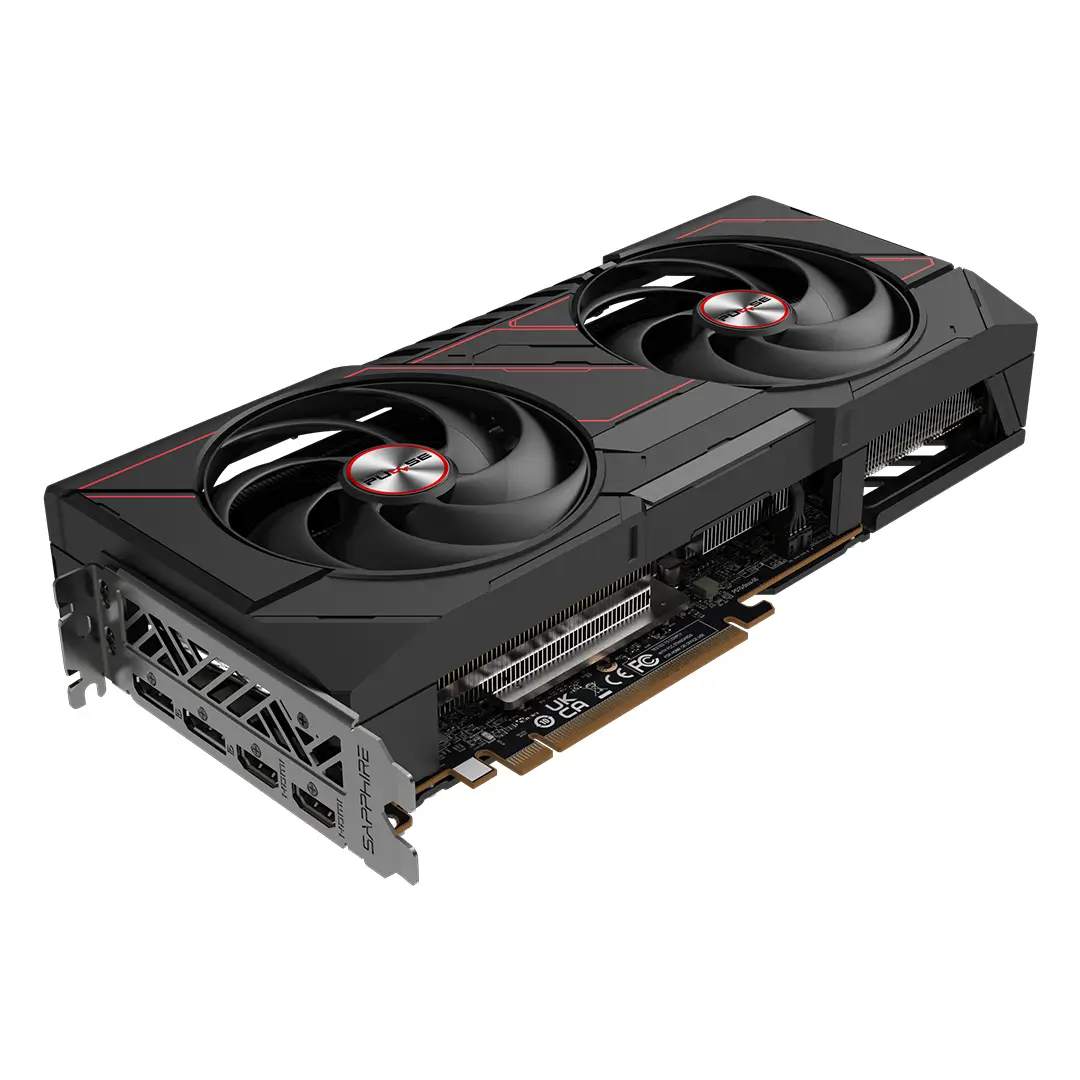

Sapphire Pulse AMD Radeon RX 9070 Gaming Edition with 16GB GDDR6 Graphics Card, 2520 MHz Boost Clock, 256-bit, 3584 Stream Processors, 20 Gbps Memory Clock, HDMI 2xDP, AMD RDNA 4 Architecture, PCIE 5.0
Sapphire Pulse AMD Radeon RX 9070 Gaming Edition with 16GB GDDR6 Graphics Card, 2520 MHz Boost Clock, 256-bit, 3584 Stream Processors, 20 Gbps Memory Clock, HDMI 2xDP, AMD RDNA 4 Architecture, PCIE 5.0
Sapphire Pulse AMD Radeon RX 9070 Gaming Edition with 16GB GDDR6 Graphics Card, 2520 MHz Boost Clock, 256-bit, 3584 Stream Processors, 20 Gbps Memory Clock, HDMI 2xDP, AMD RDNA 4 Architecture, PCIE 5.0
Key Features
✅ Boost Clock: Up to 2520 MHz
✅ Game Clock: Up to 2070 MHz
✅ Memory: 16GB/256 bit DDR6. 20 Gbps Effective
✅ Stream Processors: 3584
✅ AMD RDNA™ 4 Architecture
✅Ray Accelerator: 56
Specifications
| GPU | AMD Radeon™ RX 9070 XT Graphics Card AMD RDNA™ 4 Architecture |
| Engine Clock | Boost Clock: Up to 2520 MHz Game Clock: Up to 2070 MHz |
| Stream Processors | 3584 |
| Compute Units | 56 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 64MB |
| Ray Accelerators | 56 |
| AI Accelerator | 112 |
| Memory Size/Bus | 16GB/256 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® 2x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 4K |
| Sapphire Features | Honeywell PTM7950 Thermal Interface Material (TIM) AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Dual-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate Two-Ball Bearing Fans 12-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported TriXX Boost |
| AMD Features | AMD RDNA™ 4 Architecture 56 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AV1 Encode/Decode AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology 16 GB of GDDR6 on 256-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition™ application |
| Cooler Type | Dual-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing |
| Form Factor | 2.5 slot, ATX Dimension: 280(L)X 120.25(W)X 51.5 (H)mm |
| Power Consumption | 220W Typical Board Power |
| OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 650 Watt Power Supply 2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
